PrecisionPoint PRVX3

Configuration:

1)     Channels - 750 channels

2)     Leica MZ6 Ergo Tube Microscope assy. - 1 set.

3)     PMM Chassis – 1 unit

4)     750 channels pogo block assembly – 1 unit with cabling

5)     PMM Analog Board W/ Daughter board

6)     PMM switching board (750 channels) - 6 pcs.

7)     PMM Relay board (125 Relay Channels) – 1 pcs.

8)     High Resolution Optic System

9)     Calibration Kits:

• Support rail assembly – 1 set
• Cal-5VX2 card – 1 Pcs.
• Support plate leveling gage – 1 Pcs.
• Vision Gage Card – 1 Pcs.
• Quick change connect assembly- 1 set
• Tools kits set – 1 set
• Gain Fixture Calibration kit

10)               Tungsten Plate – 1 Pcs.

11)               Gold Plate – 1 Pcs.

12)               Dual Dot check plate 3mils

13)               3 mils Probe Force & Wire check assembly

14)               Applied Precision Software Version : 1.19 VX3

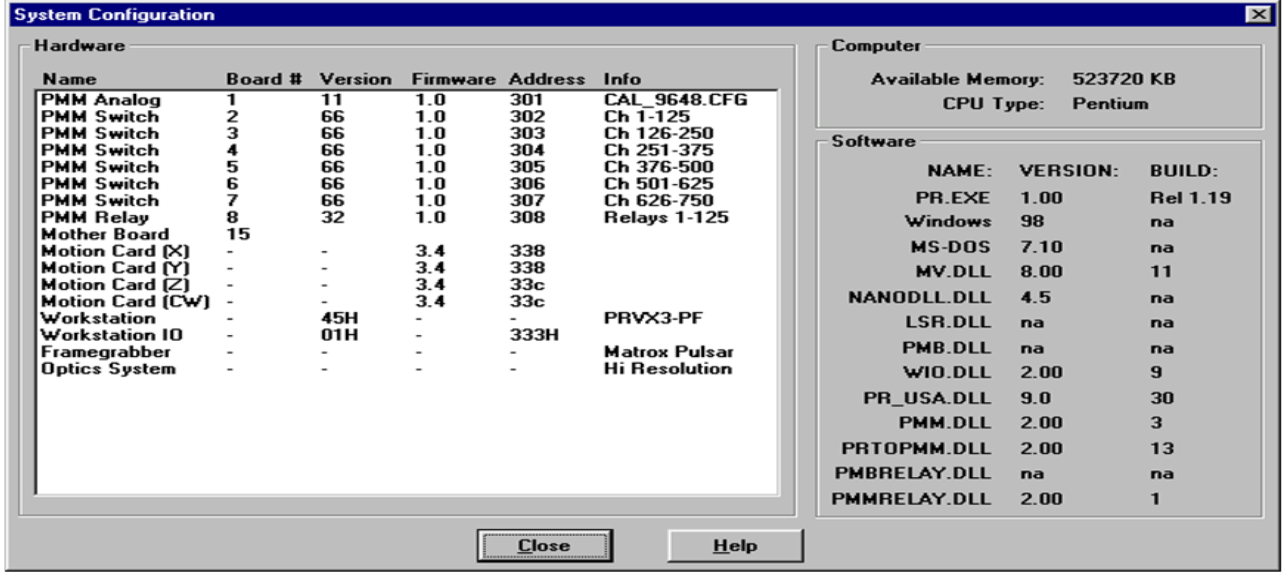

System configuration:

Vision Gage Card Calibration Result

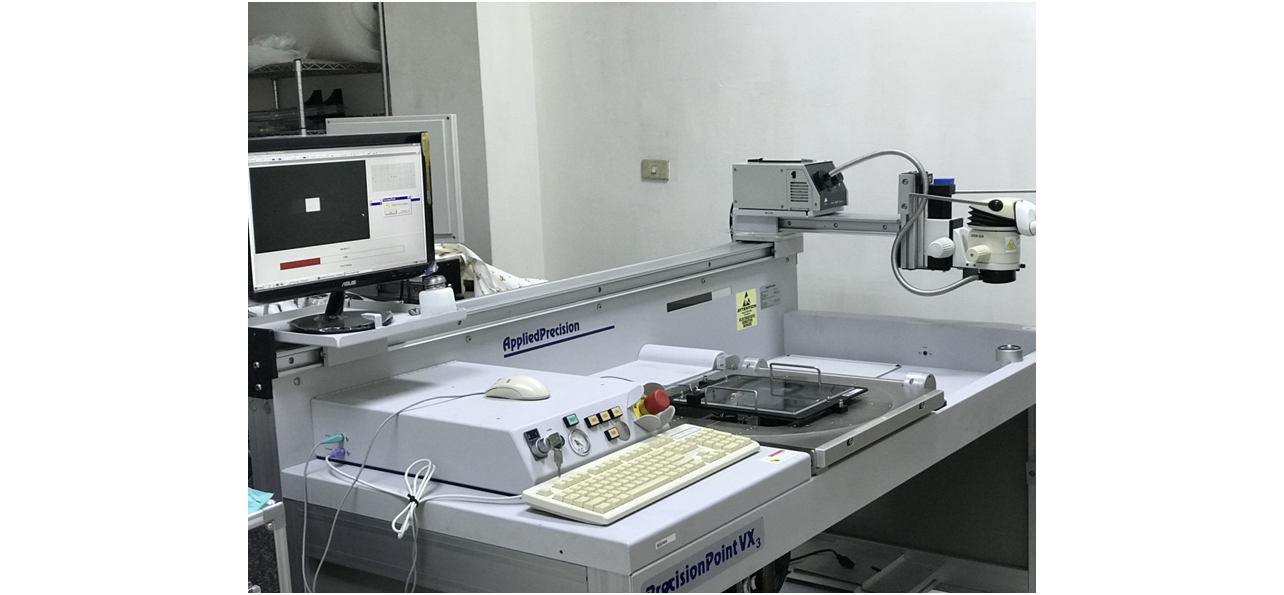

PRVX3 System Photo
